Features:

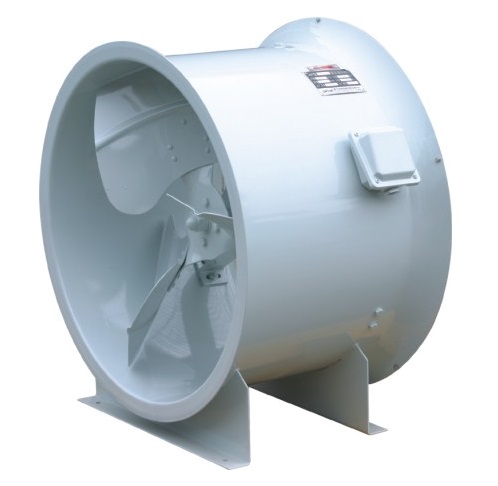

1. Improved on DBF series, the JBF series fan is a newly-developed type of transformer-purpose fan. Compared with the old type, it has great improvement and therefore been greatly praised by customers and users.

2. Using analytic tool and the blade is calculated to varied working conditions to ensure lower noise, smoother curve, more reliable at practical operation.

3. Made of cold-forming high strength al-alloy. The blade's strength & sturdiness  improved after adding strengthening steel.

4. The JBF series fan is equiped with automatic on-off switch box, which automatically controls fan's operation according to the transfer's oil temperature collected by heat-sensor.

Motor:

Specially and professionally designed for JBF series transformer fan, the YCF type motor has its characristic as follows:

1. Equiped with double-side hermetically sealing bearing and double bearing structure on axle-stretching terminal, the motor has 2.5 times longer life, lower noise.

2. It has water proof devices on axle-stretching terminal and power wire outlet, and are protectively coated with opoxy priming paint and polyurethane paint. So motor's ability of corruption-resisting and radiation-resisting has greatly improevd, up to IP55.

3. B class heat-resisting material ensures and protects the motor's environmental temperature below 75℃, with temperature-rising less than 55℃ when full load.
