In industrial coating processes, ovens are essential to cure coatings, ensuring durability and finish quality. A critical yet often overlooked component in these ovens is the centrifugal plug fan—a specialized impeller assembly designed for high temperature, compact installation, and dependable air circulation.

The technical characteristics of centrifugal plug fan makes it uniquely suited for coating machine ovens.

What Is a Centrifugal Plug Fan?

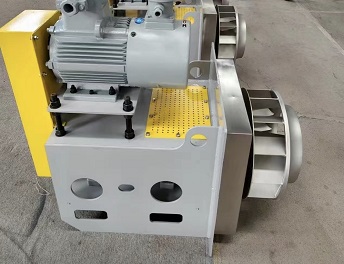

A centrifugal plug fan (also referred to as a plug-in centrifugal fan) is a type of fan where the centrifugal impeller is mounted directly onto a panel or plenum wall, without a surrounding volute casing. It is “plugged” into the oven or duct wall, saving space while enabling efficient air movement—ideal for scenarios with restricted clearance and exposed to high heat. These fans are commonly used in ovens, paint booths, and drying tunnels.

Centrifugal Plug Fans Are Ideal for Coating Ovens

Compact & Space-Saving Design

Without housing, plug fans reduce installation space and simplify maintenance access—beneficial when oven interior space is at a premium.

High Temperature Capability

Coating ovens can reach elevated temperatures. Centrifugal plug fans—especially backward curved types—are engineered to handle continuous operation at high temperature.

Durable Construction for Tough Environments

To withstand harsh operating conditions, these fans often incorporate sturdy bearings, heavy-duty shafts, and rugged motor drive systems. In some configurations, components are exposed to oven conditions but protected in compact plug arrangements.

Effective Recirculation & Airflow Control

Ovens rely on uniform air distribution to achieve consistent coating cures. Centrifugal plug fans enable reliable recirculation by delivering stable airflow across varied temperature and pressure conditions.

Technical Features That Matter

In coating lines, ovens can take many forms—from conveyorized curing ovens to batch curing machines. Centrifugal plug fans are used for:

• Recirculation of hot air, promoting even temperature distribution.

• Exhaust of volatile organic compounds (VOCs) during pre-heat or flash-off stages.

• Drying or bake-off operations in powder coating setups.

Selection Criteria

When selecting a centrifugal plug fan for a coating oven, consider:

• Temperature rating: Ensure the fan is rated above the oven's maximum operating temperature.

• Impeller design: Backward curved impellers offer efficiency and performance across variable loads.

• Mounting configuration: Fan depth and arrangement must match oven wall thickness.

• Maintenance access: Direct drive arrangements simplify servicing compared to hidden or remote systems.

• Balance and longevity: Pre-shipment vibration analysis and high L10 bearing life ratings ensure consistent performance. Reference: Greenheck

Final Insights

Centrifugal plug fans are a highly effective solution for coating machine ovens, delivering controlled airflow in compact, high-temperature environments. By selecting fans with the right impeller geometry, temperature rating, and mechanical robustness, process engineers can ensure reliable, energy-efficient oven operations.
