Direct Drive vs. Belt Drive in Axial Fan and Centrifugal Fan

Update time : 2025-08-22 10:30:00

When selecting industrial fans, one of the most critical decisions is whether to use a direct drive or belt drive system. Both axial and centrifugal fans can be configured in either way, and the choice impacts performance, efficiency, maintenance, and cost. Here explores the differences and helps you decide which system is best for your application.

What Is Direct Drive?

A direct drive fan has the fan impeller mounted directly on the motor shaft. This means the motor and fan rotate at the same speed, with no intermediate components like belts or pulleys.

Advantages of direct drive:

Higher efficiency: No energy loss from belts or pulleys.
Compact design: Requires less installation space.
Lower maintenance: No belts to replace or tension.
Reliability: Fewer moving parts mean less chance of failure.

Limitations:

Fixed speed: Fan speed depends on motor speed (unless using a VFD – variable frequency drive).
Higher initial cost: Motors are typically more expensive than belt drive setups.

What Is Belt Drive?

A belt drive fan uses a belt and pulley system to connect the motor and the fan impeller. This allows for different speed ratios, as the pulley size can be adjusted.

Advantages of belt drive:

Speed flexibility: By changing pulley sizes, the fan speed can be adjusted without changing the motor.
Application versatility: Useful when airflow and static pressure requirements vary.
Lower motor stress: Motor can run at an optimal speed while the fan runs at the required speed.

Limitations:

Maintenance required: Belts wear out and need regular replacement or tension adjustments.
Efficiency loss: Energy is lost due to belt friction and slippage.
Space requirement: Larger installation footprint compared to direct drive.

Direct Drive vs. Belt Drive in Axial Fans

Axial fans are commonly used in applications like tunnel ventilation, cooling towers, HVAC systems, and industrial exhaust.

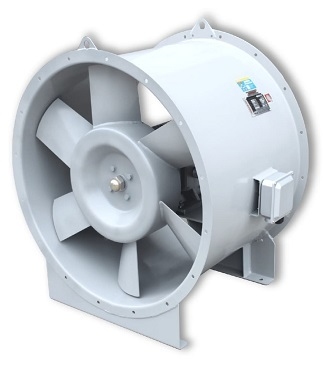

Direct drive axial fans:

Best for continuous operation, energy efficiency, and when variable speed control (via VFD) is available. Ideal for HVAC systems where low noise and reliability matter.

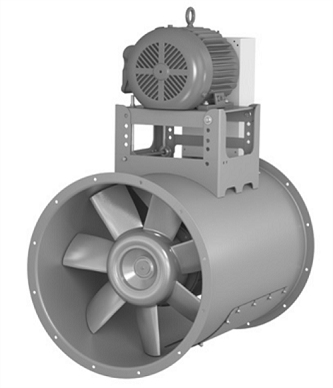

Belt drive axial fans:

Suitable for large airflow requirements with flexible speed control. They are often used when the system may need future performance adjustments.

Direct Drive vs. Belt Drive in Centrifugal Fans

Centrifugal fans are often used in industrial ventilation, dust collection, and process air handling.

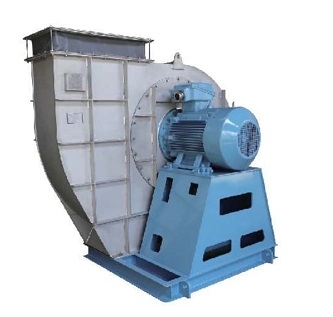

Direct drive centrifugal fans:

Provide stable performance, low vibration, and reduced maintenance. Recommended for clean air systems, constant operating conditions, or critical applications where downtime is costly.

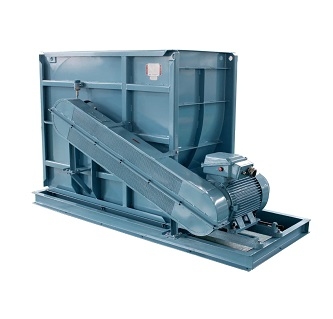

Belt drive centrifugal fans:

Preferred when static pressure and airflow requirements are uncertain or may change. They offer design flexibility for industrial processes but require regular inspection and belt replacement.

Key Selection Factors

When deciding between direct drive and belt drive, consider:

Airflow & Pressure Requirements
- If exact requirements are known and stable → Direct drive.
- If flexibility is needed → Belt drive.
Energy Efficiency
- Direct drive saves more energy long-term, especially when combined with a VFD.
Maintenance Capability
- Direct drive: minimal maintenance.
- Belt drive: requires skilled personnel for belt tensioning and replacement.
Space & Installation Constraints
- Direct drive is more compact.
- Belt drive may need more space for pulleys and belts.
Total Cost of Ownership
- Direct drive may have a higher upfront cost but lower lifetime costs.
- Belt drive is cheaper initially but has higher maintenance expenses.

Conclusion

There is no universal “best” choice between direct drive and belt drive for axial and centrifugal fans. Instead, the decision depends on:

Stability of system requirements
Desired energy efficiency
Available maintenance resources
Space and cost considerations

For long-term efficiency and reliability, direct drive is usually the better option—especially in modern HVAC systems. For flexibility and adjustability, belt drive still plays an important role, particularly in industrial applications where performance requirements may change.

By evaluating your project’s airflow needs, budget, and maintenance capability, you can select the fan drive system that ensures the best performance and lowest total cost.
